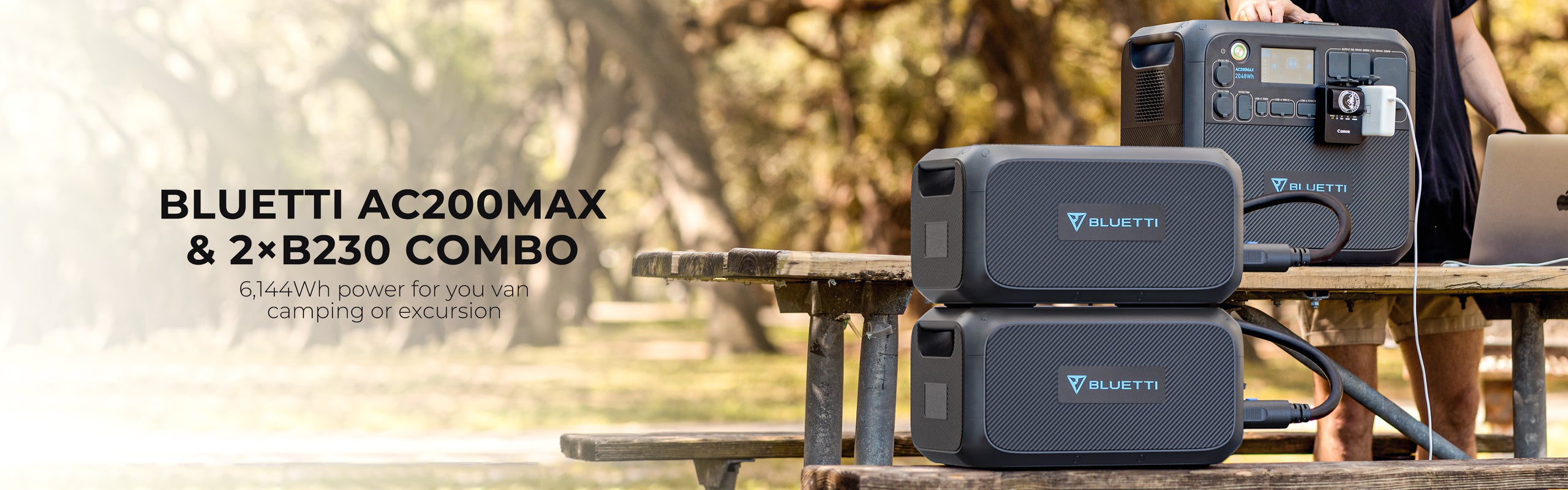

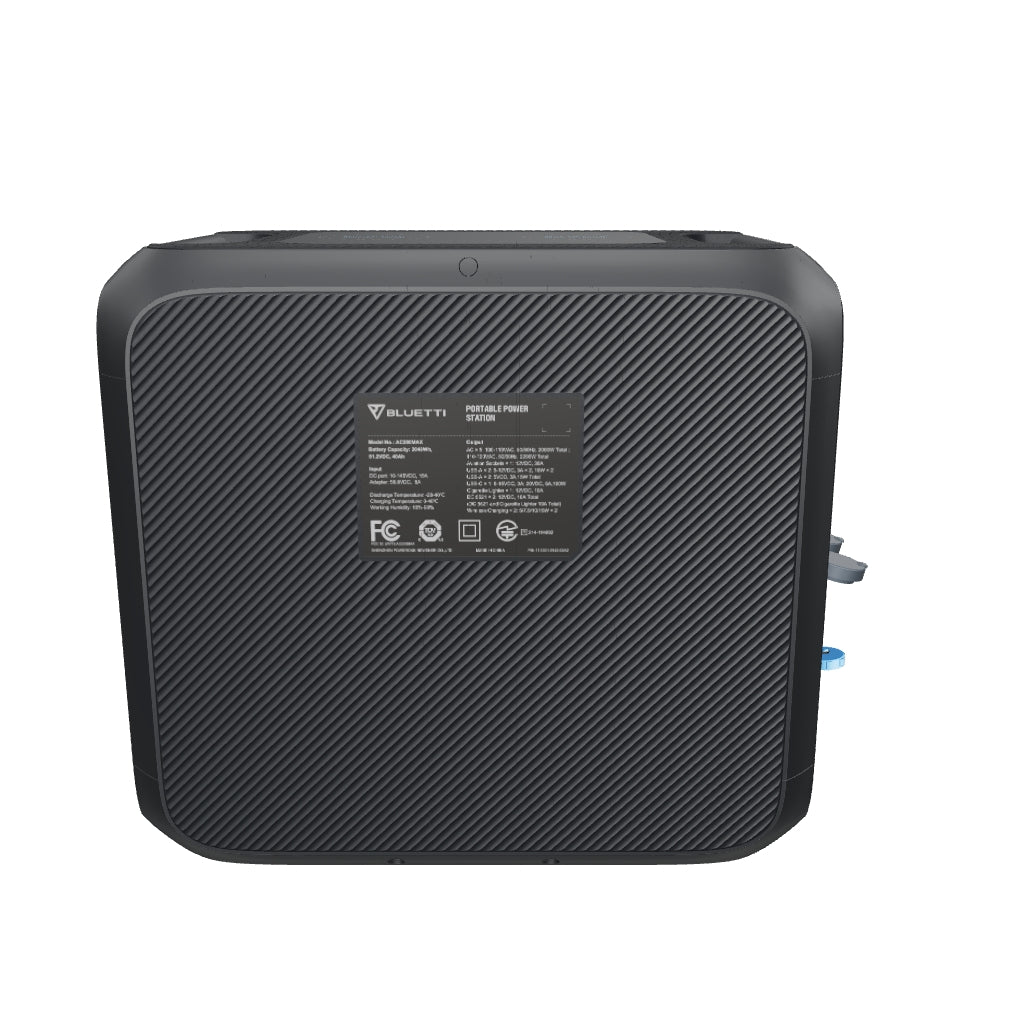

BLUETTI AC200MAX + 2*B230 | Home Battery Backup
Citi Pay® Credit – Special financing available. Learn More
- 2,200W AC Pure Sine Wave Inverter (4,800W Surge)
- 2,048Wh Capacity
- LiFePO4 Battery with 3,500+ Life Cycles to 80%
- Expandable Up To 6,144Wh with 2×B230, or 8,192Wh with 2×B300
- 7 Ways to Recharge (AC/Solar/Car/Generator/Lead Battery/Dual AC/AC+Solar)
- 900W Max. Solar Input
- 1400W Max. Fast Dual Charging (Solar + AC Adapter)
- Smart Control & Monitor in BLUETTI App
4-year Hassle Free
SMALL CHANGE, HUGE LEAP
LESS TO SPEND, MORE TO LOVE
GET CHARGED IN ANYWAY YOU PREFER
INCOMPARABLE OUTLET VERSATILITY
Other Top Rated Products
Q1: How many B230 or B300 battery module can be hooked up with the AC200/P?A:
Up to two B230 or B300, one via the solar input port by a converter cable, and another one via the AC adapter inlet (Require the BLUETTI D050S - DC charging enhancer, sold separately).Friendly Note: which means that if the total power of your devices exceeds 700W.
Q2: Can the B230 battery module be used alone?A:
Yes. B230 has a 100W USB-C, a USB-A and a 12V DC output ports, the battery module can work flawlessly when standalone.
Q3: What are the charging methods for the BLUETTI B230?A:
B230 can be recharged by:
1. 500W AC adapter (Sold separately)
2. Car cigarette lighter output or solar panels (Require the BLUETTI D050S - DC charging enhancer, sold separately).
Notice: There is only one inlet on the battery module, so it cannot be charged by more than one charge method simultaneously.
Q4: Does AC200MAX support split phase bonding?A:
Q5: Can AC200MAX be remotely controlled via APP?A:
ou can control the AC200 MAX via APP or touchscreen. But APP only can be connected via Bluetooth.
Q6: How many B230 or B300 battery module can be charged with AC200MAX?A:
Up to two B230’s or B300 battery modules
Q7: What are the charging methods for AC200MAX？A:
- 1. Wall outlet (AC adapter): MAX.500W, fully recharge in 4.6~5.1hrs.
- 2. Dual AC Adapters: MAX.1000W, fully recharge in 2.5~3.0hrs.
- 3. Solar Panels: MAX.900W, Open circuit voltage range: 10V~145V; fully recharge in 2.8~3.3hrs. (Doesn’t work with roof solar array with total Voc higher than 145V)
- 4. Solar Panels & Wall Outlet simultaneously: MAX.1400W (500W from AC adapter, 900W from solar panels), fully recharge in 2~2.5hrs
- 5. 12V/24V Car Cigarette Lighter
- 6. 12V/24V lead-acid Battery
- 7. EV Charging Station (EV adapter sold separately)
- 8. Generator
- 9. BLUETTI Wind Turbine (In progress)
Q8: Does AC200MAX have UPS function？A:
Q9: Can AC200MAX be recharged with solar panels and wall outlet simultaneously or dual AC adapters?A:
Q10: Is the solar charge controller mode MPPT or PWM?A:
Q11: Can I use third party solar panel and what conditions need to be met?A:
Yes, you can. The solar array must meet the following conditions:
1. Total open circuit voltage(Voc) falls in the range of 10-145V/MAX.12A, MC4 connectors
Q12: Can you ship the AC200MAX to Puerto Rico, Hawaii and Alaska deliver ?A:
Can not. Because the package exceed the weight limit of the logistics company.
