AC500 Home Integration Kit

Write a review | 1 question
US$649.00
US$649.00 US$1,499.00 Sale



Compatible Models: AC500

AC500 Home Integration Kit(120V): Connect the AC500 power system to the home main panel.
Including:
1 x 50A Outlet Box (Reliance)

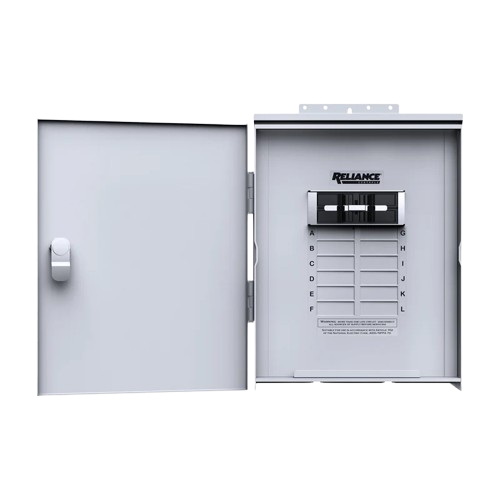

1 x Sub Panel With a 50A Inlet SS2-50 Box Inside (Reliance)
1 x 50A AC Charging Cable
1 x NEMA14-50 to SS2-50R Cable

AC500 Home Integration Kit (120V & 240V): Connect the AC500 split phase system to the home main panel (Require 2 AC500s and at least 2 B300S)
Including:
1 x 50A Outlet Box (Reliance)
1 x Sub Panel With a 50A Inlet SS2-50 Box Inside (Reliance)
1 x 50A Split-phase AC Charging Cable
1 x 2* NEMA 14-50 to SS2-50R Cable (Connect two AC500 to transfer switch via NEMA 14-50 AC output prots.)
1 x Communication Cable

Click to Download The Manual
Sub Panel With Transfer Switch Manual


Product Model:


Free
Local Shipping

1-year Hassle Free
Warranty

Lifetime Customer
Support

AC500 Standalone Kit

Connect the AC500 power system to the home main panel.

AC500 Power Suite

Connectthe AC500 split phase system to the home main panel (Require2 AC500s and at least 4 B300S)

Never Run Out of Power

Suitable for various occasions

Other Top Rated Products

Specifications

BATTERY INFO


Capacity:
3,072Wh (51.2V, 60Ah)

Type:
LiFePO4 (Lithium Iron Phosphate)

Life Cycles:
3500+ Cycles to 80% Original Capacity

Shelf-life:
Recharge to 80% Every 3-6 Months

Management System:
MPPT Controller, BMS, etc.

OUTPUT


USB-C Port:
1 x 100W Max.

USB-A Port:
1 x 18W USB-A

12V DC Outlet*:
1 x 12V/10A (Car Outlet)
*All Regulated.

INPUT


AC Input:
500W Max.

Solar Input:
200W Max., VOC 12-60VDC, 10A

Car Input:
12/24V from Cigarette Lighter Port

Max Input:
700W, With AC Adatper + Solar Input Simultaneously

RECHARGE TIME


AC:
≈ 6.5~7 Hours at 500W

Solar:
≈ 15.5~16 Hours at 200W
(With prime sunshine, ideal orientation and low temperature)

12V/24V Car Outlet (100W/200W:
≈ 30 or 15 Hours

AC + Solar:
≈ 5 Hours at 700W
(With prime sunshine, ideal orientation and low temperature)

Solar + Solar:
≈ 5 Hours at 700W (D050S DC Charging Enhancer REQUIRED)

Dual AC:
≈ 5 Hours at 700W (Extra adapter REQUIRED)

GENERAL


240V Split Phase Bonding:
Yes, work with AC300

Pass-through Charge:
Yes

Weight:
79.6lbs (36.1kg)

Dimensions (LxWxD):
20.5 x 12.5 x 10.5in ( 52 x 32 x 26.6cm)

Operating Temperature:
-4-104℉ (-20-40℃)

Storage Temperature:
-4-104℉ (-20-40℃)

Certifications:
UL Standard, CEC, DOE, FCC, CA Prop 65

Warranty:
48 Months (Enter to learn more about BLUETTI warranty policy)

Optional Accessories

BLUETTI PV120/PV200/PV350 (Solar Panel)

Learn more >

D050S (DC Charging Enhancer)

Learn more >

T500 Adapter (AC Input)

Learn more >

User Manual

AC500 Home Integration Kit User Manual

Download Download Now >
