AC300 Home Integration Kit

Name: AC300 Home Integration Kit
Brand: BLUETTI
SKU: AC300 Sub Panel-SPFUS
Price: 619.0 USD
Availability: InStock

0.0 ( reviews) | Ask a question

US$619.00

Citi Pay^® Credit – Special financing available. Learn More

Compatible Models: AC300

AC300 Home Integration Kit (120V): Connect the AC300 power system to the home main panel.
Including:

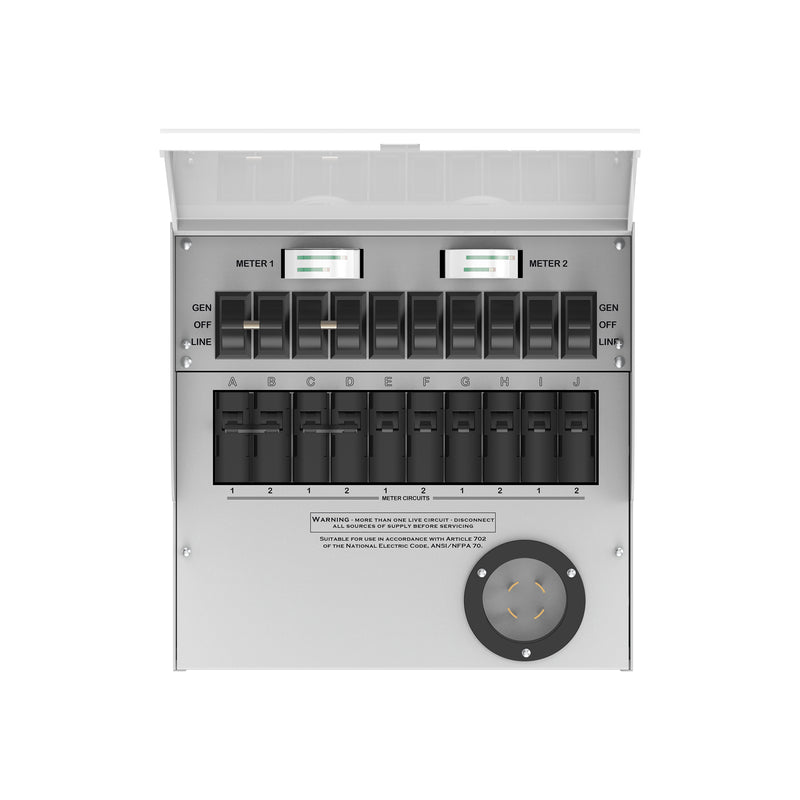

1×Sub Panel With a 30A Inlet Box Inside (Reliance)
1×30A Outlet Box (Reliance)
1×30A AC Charging Cable (L14-30)
1×TT30 to L14-30 Cable

AC300 Home Integration Kit (120V & 240V): Connect the AC300 split phase system to the home main panel. (Require 2 AC300 and at least 4 B300)
Including:
1×Sub Panel With a 30A Inlet Box Inside (Reliance)
1×30A Outlet Box (Reliance)
1×30A Split-phase AC Charging Cable
1×2*TT-30P to L14-30C (Connect two AC300 to transfer switch via TT-30P AC output ports.)
1 x Communication Cable

Click to Download The Manual

Product Model:

AC300 Home Integration Kit (120V)
AC300 Home Integration Kit (120V & 240V)
AC300-2*TT-30P to L14-30C Cable

Variants:

Quantity :

Free
Local Shipping

1-year Hassle Free
Warranty

Lifetime Customer
Support

AC300 Standalone Kit

Connect the AC300 power system to the home main panel.

AC300 Power Suite

Connect the AC300 split phase system to the home main panel (Require2 AC300s and at least 4 B300)

Never Run Out of Power

Suitable for various occasions

Other Top Rated Products

Specifications

BATTERY INFO

Capacity:

3,072Wh (51.2V, 60Ah)

Type:

LiFePO4 (Lithium Iron Phosphate)

Life Cycles:

3500+ Cycles to 80% Original Capacity

Shelf-life:

Recharge to 80% Every 3-6 Months

Management System:

MPPT Controller, BMS, etc.

OUTPUT

USB-C Port:

1 x 100W Max.

USB-A Port:

1 x 18W USB-A

12V DC Outlet*:

1 x 12V/10A (Car Outlet)
*All Regulated.

INPUT

AC Input:

500W Max.

Solar Input:

200W Max., VOC 12-60VDC, 10A

Car Input:

12/24V from Cigarette Lighter Port

Max Input:

700W, With AC Adatper + Solar Input Simultaneously

RECHARGE TIME

AC:

≈ 6.5~7 Hours at 500W

Solar:

≈ 15.5~16 Hours at 200W
(With prime sunshine, ideal orientation and low temperature)

12V/24V Car Outlet (100W/200W:

≈ 30 or 15 Hours

AC + Solar:

≈ 5 Hours at 700W
(With prime sunshine, ideal orientation and low temperature)

Solar + Solar:

≈ 5 Hours at 700W (D050S DC Charging Enhancer REQUIRED)

Dual AC:

≈ 5 Hours at 700W (Extra adapter REQUIRED)

GENERAL

240V Split Phase Bonding:

Yes, work with AC300

Pass-through Charge:

Yes

Weight:

79.6lbs (36.1kg)

Dimensions (LxWxD):

20.5 x 12.5 x 10.5in ( 52 x 32 x 26.6cm)

Operating Temperature:

-4-104℉ (-20-40℃)

Storage Temperature:

-4-104℉ (-20-40℃)

Certifications:

UL Standard, CEC, DOE, FCC, CA Prop 65

Warranty:

48 Months (Enter to learn more about BLUETTI warranty policy)

Optional Accessories

FAQS

Q1: Can the B300 battery module be used alone?

A:

Yes. B300 features a 100W USB-C, a USB-A and a 12V DC output ports. The battery module can work flawlessly when standalone.
Q2: How many B300 battery modules can connect with AC300?

A:

Up to 4xB300 battery modules can connect with AC300.
Q3: How many B300 battery modules can connect with AC200Max?

A:

Up to 2xB300 battery modules can connect with AC200Max.
Q4: How many B300 battery modules can be hooked up with the AC200/P?

A:

Up to two B300. One via the solar input port by a converter cable, and another via the AC adapter inlet.
Q5: Does B300 support Hot Swapping?

A:

Yes, you can connect B300 battery pack into AC300 or AC200Max without turning them off.
Q6: What are the charging methods for the BLUETTI B300?

A:

B300 can be recharged by:
1. 500W AC Adapter (Sold separately)
2. 200W Solar Panel (Sold separately)
3. Car cigarette lighter port or Lead-acid battery.
Q7: Can B300 be recharged with solar panels and wall outlet simultaneously or dual AC adapters?

A:

Yes.
Q8: Can you ship the B300 to Puerto Rico, Hawaii, and Alaska deliver?

A:

NO
Q9: Can not. The packages exceed the transportation weight limit of the logistics company.

A:

Yes.
